Most of us are familiar with park-and-ride facilities: large parking lots surrounding transit stops. They generally expand the effective “reach” of a transit stop by allowing people to combine automobiles and transit in a single trip. Yet they also have several disadvantages, including negative visual impacts, forgone revenue from other uses of the space, and the cost of the facilities themselves.
There is a better way. In contrast to park-and-rides, “bike-and-ride” facilities are much more cost effective and have fewer negative impacts. For example, a structured park-and-ride facility planned for Northgate in Seattle is estimated to cost $30,000 per parking stall. Compare that with a recent federal grant for secure bicycle parking in the Seattle area at a cost of roughly $4,400 per bike stall. And of course, park-and-rides encourage people to drive, which results in a variety of negative health, safety, and environmental consequences.
In the Northwest, we have already developed some forms of bike-and-ride, but there is still much more we can do. Let’s take a look at some of the ways we can integrate bicycles and transit.
Bike parking

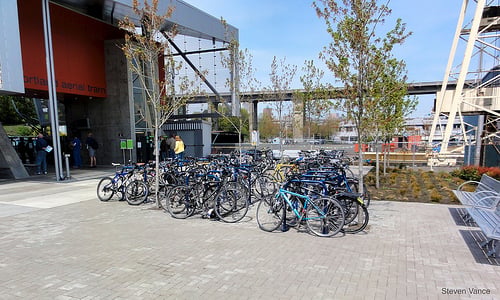

Bike parking bears the strongest similarity to park-and-rides. These relatively simple facilities help potential transit riders access stops. Instead of large and expensive parking structures, users can park bicycles in much smaller storage facilities. The simplest form of bike parking is the humble bike rack.
Bike racks are inexpensive to install, which allows public agencies to deploy lots of them at little cost. It’s quick and easy to lock your bike to them, which is great if you are trying to get to your stop on time. The main disadvantage is the risk of theft.
A step up from bike racks are protected bike storage facilities. These have the advantage of being secure against theft. They also are often covered, which bike racks are usually not. The current state of the art for individual bike lockers is electronic cards that make it easier for casual users to rent a locker for short periods and enable the same locker to serve multiple different people throughout the day. Here’s a short video from StreetFilms showcasing electronic bike parking:

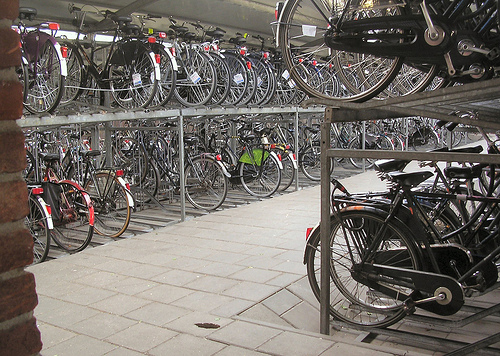

In other places where bicycle storage is in heavy demand but space is at a premium bike storage facilities are sometimes secured by an attendant. Here’s an example from a train station in Hoorn, a town of 70,000 people in the Netherlands:
Unlike electronic lockers, bicycles on racks can be secured much closer to each other. Such facilities often have a coded card system whereby one receives one card of a particular color or pattern to go with the bike and another to present when retrieving it. The cost of an attendant is mitigated by having many bike spaces per attendant.
Bikes on transit
Of course, bike parking constitutes just one version of integrating bicycles and transit. Another form of bike-and-ride involves bringing bicycles onto transit vehicles themselves. Buses that carry bikes typically use racks mounted on the front of the coach and are often designed to hold up to three bicycles.
Here’s a King County Metro bus advertising bike racks on the system’s buses.
One disadvantage of external bike racks is that bikes are exposed to the elements and can pick up dirt and grit from the road. Also these front-mounted bike racks are (and probably always will be) limited to three bikes. That creates some uncertainty about whether a prospective ride will be able to obtain a bike space and may limit the number of people willing to bring their bikes to the bus stop. Having to wait for the next bus owing to lack of rack space is an annoyance many would rather do without.

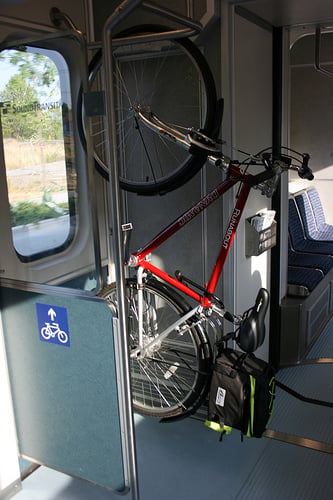

Rail vehicles tend to have more bike storage space. In the Portland and Seattle metro areas, light rail cars come equipped with hooks so bikes can hang without the traveler needing to hold onto them. Portland has four racks per car and Seattle’s Central Link Light Rail has two per car.
When the space for bikes fills up, light rail riding cyclists are allowed to hold their bicycles in the standing area on the trains. In both the Portland and Seattle metro areas, bikes are allowed on at all times when there is sufficient room. In Vancouver, the Skytrain has either one or two bike spaces per car, but disallows bicycles during peak travel periods. The Bay Area Rapid Transit system in the San Francisco area recently experimented with eliminating restrictions on boarding with a bicycle during peak periods and it seems to be going well so far. If the experiment is a success, perhaps Vancouver’s Translink system will consider a similar experiment.
Heavy rail has similar rules. The Seattle area’s Sounder and the Vancouver, BC area’s West Coast Express both allow bicycles on trains. It’s free for Sounder riders, but West Coast Express riders have to pay “$1/day, $5/week or $17/28 days.” Both services limit the number of bicycles per rail car.
Bike sharing
The inherent space limitation on transit vehicles means that they will never be able to accommodate more than a few cyclists and their bikes per vehicle. Conventional bike parking facilities help with one leg of the trip but leave transit riders without a bicycle on the other end of the trip. One practical alternative is bike sharing.

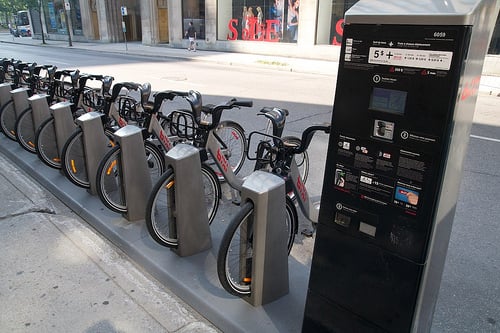

Bike sharing consists of bicycles available for short term rental. Typically secured to docking stations with electronic locks, bike sharing bikes are accessible via electronic cards or fobs. Members pay a flat rate by the day, week, month, or multi-month period and thereby gain access to any available bicycle in the network at any time. Typically the first half hour is free and then members pay extra for additional time.
When bike share stations are located throughout a city, they enable short trips, including trips that begin or end at a transit station. Bike sharing has caught on in Europe and is rapidly expanding in North America. Bike sharing systems are relatively easy and inexpensive to set up. The bikes and docking stations cost far less than park-and-ride facilities and take up much less space. Bike sharing systems are also inexpensive to operate. In fact, many systems cover their operational expenses entirely through revenue from membership fees and advertising.
In the Northwest, Portland, Seattle, and Vancouver all have bike sharing systems in the works. Portland is farthest along with an announced launch date for the spring of 2013. Vancouver is in the process of negotiating with private vendors, with a possible launch date in the summer of 2013. In the Seattle area, Puget Sound Bike Share (PSBS) recently announced an opening to fill the role of executive director. The PSBS website says they’re working to bring bike sharing to Puget Sound by 2013.
Bike Lanes
Integrating bicycles and transit is only effective when there are high-quality cycling routes between transit stops and people’s final destinations. A 2004 study by Karel Martens of Germany, England, and the Netherlands found that bike-and-ride usage tended to reflect the overall level of cycling for trips for the area in general. In Vancouver, Translink has made bicycle routes to transit part of their Transportation 2040 regional transportation strategy. (Vancouver’s Regional Cycling Strategy addresses other forms of bicycle transit integration as well.) Seattle’s 2007 Bike Master Plan (currently undergoing update) includes mention of integrating transit facilities into the bicycle route network. Portland’s Bicycle Plan for 2030 calls for prioritizing bike ways that go to transit stations along with other major destinations.
Whether better bicycling facilities actually get built, however, (and how high-quality they are) are open questions. Over at the Seattle Transit Blog, for example, Zach Shaner questions whether downtown Seattle is ready for bike sharing.
A call for action
It’s clear that bike-and-ride facilities in all their many flavors offer major advantages for mobility in the Northwest. Such facilities are much less expensive than park-and-rides, not to mention more beneficial to the environment. Yet there is still much the region can do to encourage them. The Northwest is slowly cruising towards improved bike-and ride-options, and it’s about time to shift into a higher gear.
What is your local government doing to improve bike-and-ride options where you live? What opportunities are being missed? Let us know in comments.
Scott
King County Metro, Sound Transit, and Pierce Transit allow a folding bike inside the bus as long as the bike doesn’t get in the way. The same is true elsewhere; I’ve taken my Brompton inside buses or trains on several transit systems around the country with not the least bit of trouble. This is true even when full-sized bikes are restricted. BART doesn’t allow full-sized bikes on the train during rush hour, but they allow folding bikes.
Alex Broner
Hi Scott, thanks for the response.
Most transit systems allow folding bicycles on transit systems if they’re folded. This certainly helps people who are willing to ride folding bikes and possibly own a folding bike in addition to their regular bike but folding bikes are necessarily limited in their capabilities in order to be small enough to fold into small spaces.
As I pointed out in the article, BART recently began a pilot program allowing full sized bikes during rush hour.
You can read more about the BART rule change here: http://www.bart.gov/guide/bikes/bikeRules.aspx
Dave
First, full disclosure: I am an employee of a folding bike manufacturer located in the Pacific NW. I’d like to challenge your assertion that “folding bikes are necessarily limited in their capabilities”. That’s true of some, but by no means all, folding bikes. Limited in what way? Maybe for racing, skate park or technical trail riding, but for many forms of cycling, especially daily transportation, a folding bike is a viable alternative. And it doesn’t have to be a secondary bike. Many of our customers, myself included, use a folder as a primary bike. I take it onto the bus system in Eugene on a daily basis. I can put it on the new 3-bike racks(!) on the front or (unfolded)in one of the inside bays, and as a last resort, folded and standing in the aisle. The last option assumes a sympathetic and flexible driver, but since I am a “regular” and try and act like an ambassador for bike commuters, most are and try to accommodate me. A couple of days a week, I ride the entire 15 miles home, which entails some challenging hills and even a 1/2 mile stretch of rough gravel road. Knock on wood, I’ve been refused service only 2-3 times in 5 years. Worst case scenario, I ride the whole way, which adds about 30 minutes to the trip. I always carry seasonally appropriate cycling clothing in a back pack, and the bike is fully outfitted with lights, fenders and disc brakes for all kinds of NW weather. Even though I own several nice “normal” bikes, the folding bike gets the most use by far. It’s a spendy model, not the stereotypical cheap imported folder, but it’s a much less costly (in so many ways)than a car. People are often skeptical of the lengths I go to to bike commute, but I like to point out the lengths they go to to finance the “convenience” of a car. How many hours of work per year are required to pay for all of your car-related expenses, and how might your life be different if you could devote that time to something else?
Alex Broner
Thanks for the reply Dave. I’m a fan of folding bikes, I think they’re really great and wish more people had them.
I’m not an expert on folding bikes but this is my understanding of the limitations inherent in this technology: So long as wheel rims are rigid then folding bikes will tend to have smaller wheels than non-folding varieties. There’s a reason why road bikes have wheels of a certain size: bigger wheels allow for a greater gear-wheel ratio which translates to more speed for any given level of power. People like traveling faster while using less energy! Obviously there are other trade-offs involved but I won’t go into them here. However the bigger the wheel, the bigger the bicycle. The solution to this problem is a folding or otherwise collapsible wheel. I have not seen an example of this but I imagine it is possible.
Dave: you’re an expert on folding bikes and I’m not, I’m interested in your thoughts on these assertions.
